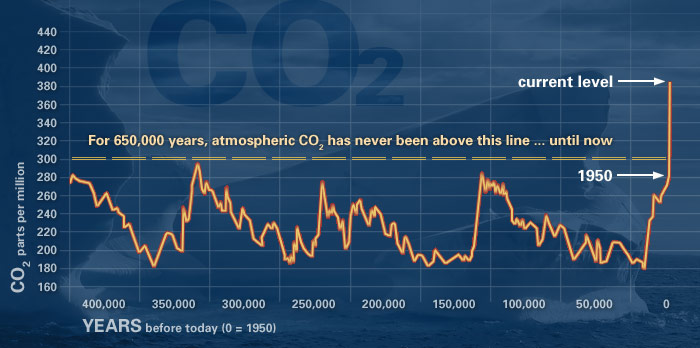

CO2 Gehalt der Atmopsphäre innerhalb der letzten 650.000 Jahre



CO2 Levels On Earth At 15-Million-Year High

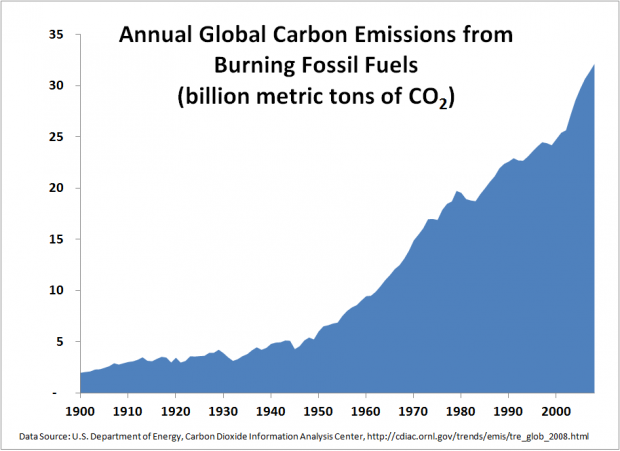

Global carbon-dioxide (CO2) emissions from fossil-fuel combustion
reached a record high of

31.6 gigatonnes (Gt) in 2011

May 24, 2012


June 11, 2012
Climate change rate could be faster than thought
China's carbon emissions could be 20% higher, Earth warming at a much faster rate

China 1: CO2 emissions have been growing 7.5% annually from 1997 to 7.69 billion tonnes in 2010
China 2: emissions of all Chinese provinces have increased 8.5% on average to 9.08 billion tonnes in 2010
US emissions were 6.87 billion tonnes in 2010







What Is Causing The Climate To Unravel?
, July 7, 2012
One trillion tons of carbon pollution.

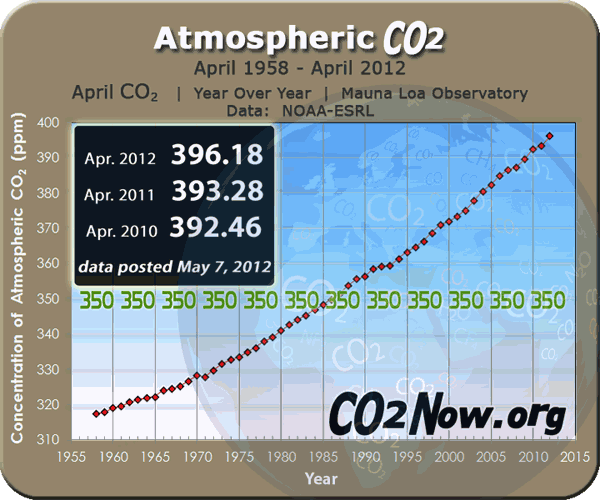

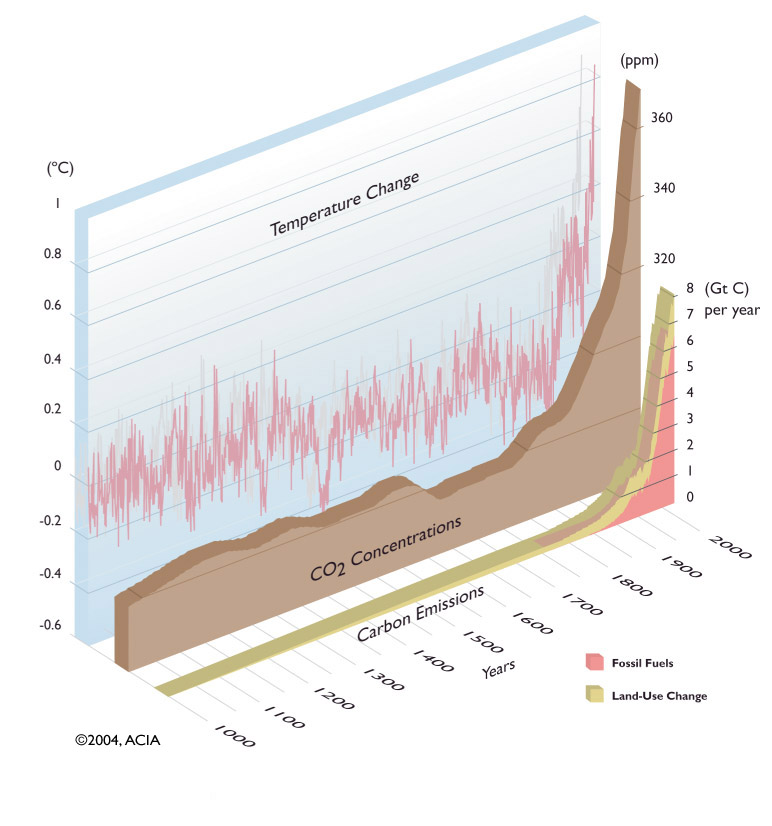

Atmospheric carbon dioxide concentration, history

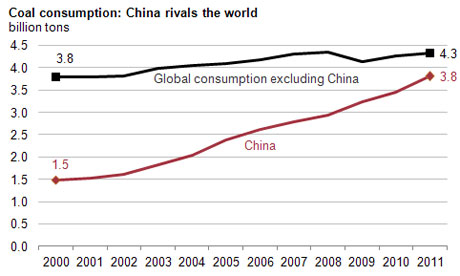

China burns half of coal consumption worldwide
, Jan 30, 2013
China overtook the US as the world's biggest carbon emitter in 2007 and became world's largest energy consumer in 2010










UN: Greenhouse Gas Inventory Data


What are the main man-made greenhouse gases?

Carbon dioxide (CO2). Accounts for around three-quarters of the warming impact of current human greenhouse-gas emissions. The key source of CO2 is the burning of fossil fuels such as coal, oil and gas, though deforestation is also a very significant contributor.

Methane (CH4). Accounts for around 14% of the impact of current human greenhouse-gas emissions. Key sources include agriculture (especially livestock and rice fields), fossil fuel extraction and the decay of organic waste in landfill sites. Methane doesn't persist in the atmosphere as long as CO2, though its warming effect is much more potent for each gram of gas released.

Nitrous oxide (N2O). Accounts for around 8% of the warming impact of current human greenhouse-gas emissions. Key sources include agriculture (especially nitrogen-fertilised soils and livestock waste) and industrial processes. Nitrous oxide is even more potent per gram than methane.

Fluorinated gases ("F gases"). Account for around 1% of the warming impact of current human greenhouse-gas emissions. Key sources are industrial processes. F-gases are even more potent per gram than nitrous oxide.

Human activity also changes the planet's temperature in other ways. For example, vapour trails from planes, soot from fires and and tropospheric ozone created indirectly by local pollution all tend to increase warming. On the other hand, aerosol particles produced by some vehicles and industrial processes tend to bounce sunlight away from the earth, temporarily counteracting some of the warming caused by man-made greenhouse gases.

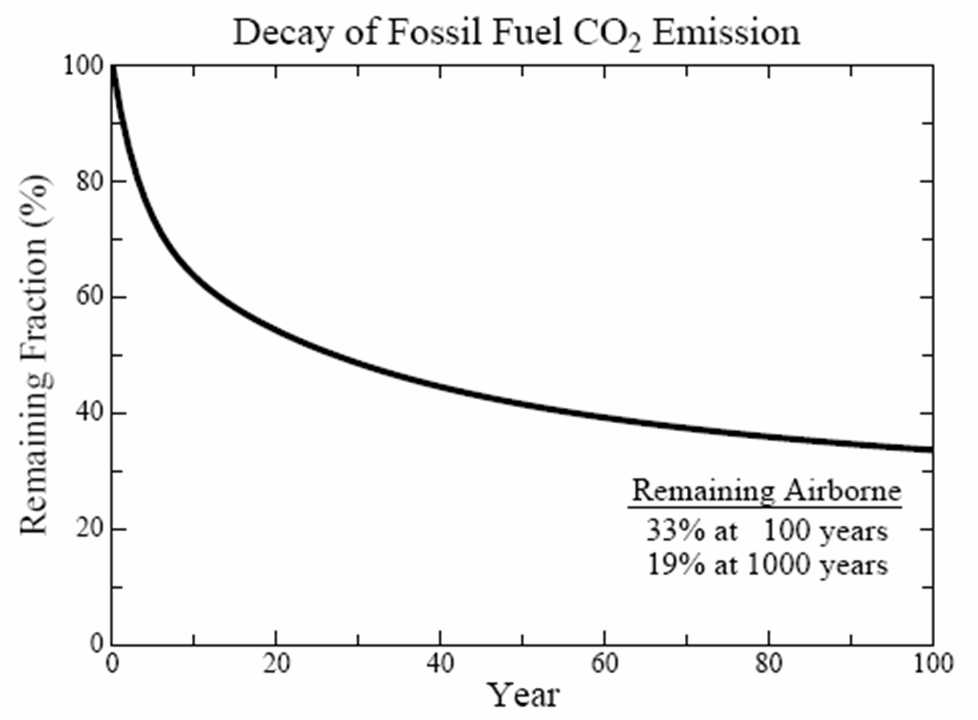

How long do greenhouse gases stay in the air?

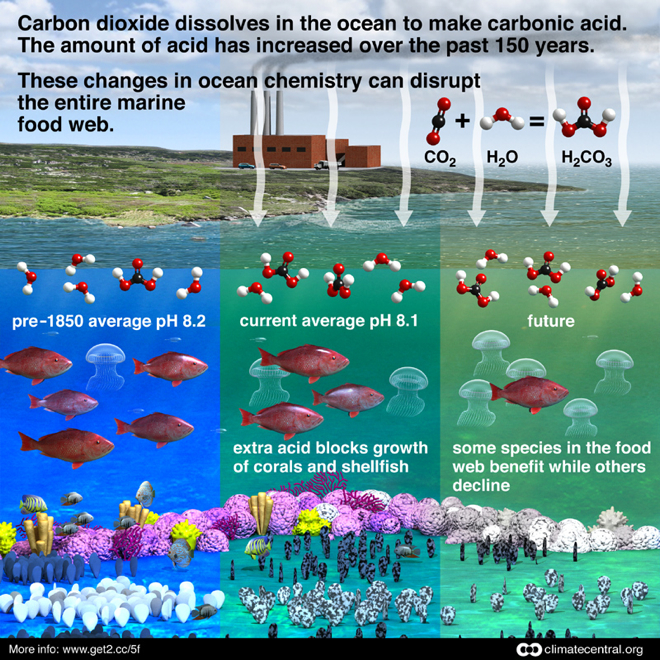

Between 65% and 80% of CO2 released into the air dissolves into the ocean over a period of 20–200 years. The rest is removed by slower processes that take up to several hundreds of thousands of years, including chemical weathering and rock formation. This means that once in the atmosphere, carbon dioxide can continue to affect climate for thousands of years.

Methane, by contrast, is mostly removed from the atmosphere by chemical reaction, persisting for about 12 years.

Nitrous oxide is destroyed in the stratosphere and removed from the atmosphere more slowly than methane, persisting for around 114 years.







KLIMASCHUTZ-INDEX 2013

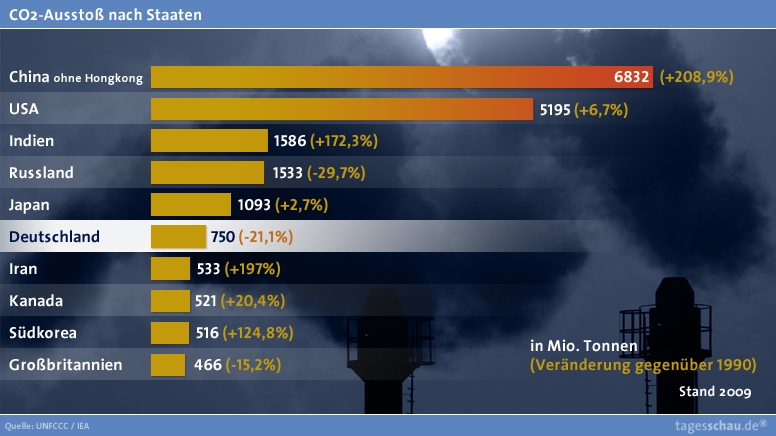

The world map of CO2 emissions

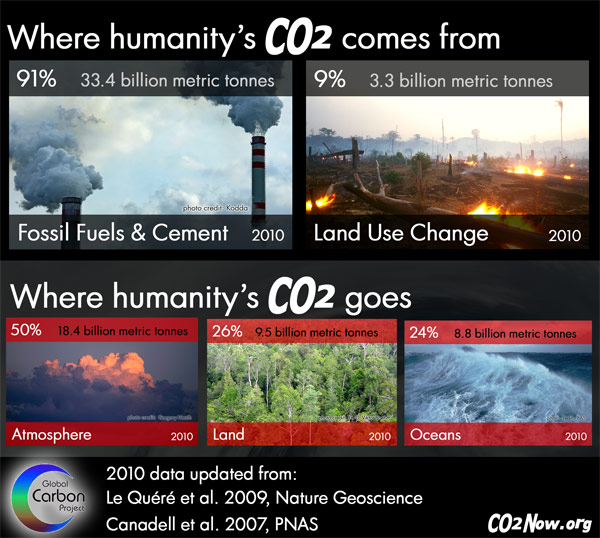

Worldwide CO2 emissions in 2010:
  30,600 Mt = 30.6 Gt



Which nations are really responsible for climate change - interactive map


A visualisation of Europe's energy - interactive, direct


How Many Gigatons of Carbon Dioxide?
The Information is Beautiful guide to Doha Gigatons of CO2. Global temperature rises. Carbon budgets. What does it all mean?
CO2 Megasheet

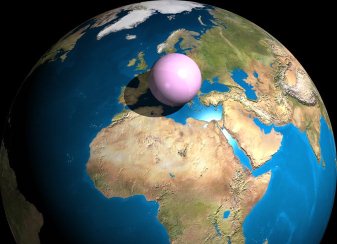

All the air in the atmosphere (5,140 trillion tonnes) pictured as a ball at sea-level density











CO2-Ausstoß der verschiedenen Wirtschaftszweige in Deutschland in 2009
Kohlendioxid-Ausstoß in Deutschland:  839,5 Mio Tonnen CO2. (= - 8% im Vergleich zu 1999).
Während diese Summe den direkt in Deutschland entstandenen Kohlendioxid-Ausstoß angibt, kommen noch
        + 9,9% importiertes CO2 durch die importierten und hierzulande verbrauchten Güter zusätzlich hinzu.


Deutschlands Treibhausgas-Ausstoß steigt
, 25.02.2013
Treibhausgas-Ausstoß ist im vergangenen Jahr gestiegen - trotz des starken Ausbaus erneuerbarer Energien
Der Ausstoß von Kohlendioxid und anderen Gasen stieg im Vergleich zum Vorjahr um 1,6 Prozent.
Insgesamt entsprach der Treibhausgas-Ausstoß demnach 931 Millionen Tonnen Kohlendioxid, 14 Millionen Tonnen mehr als 2011.

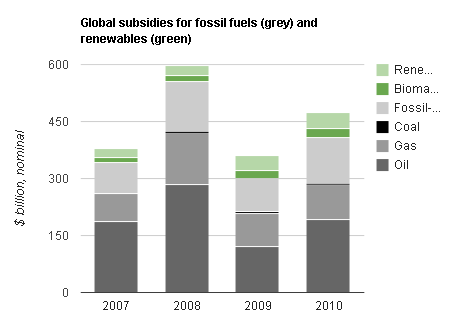

Fossil fuel subsidies: a tour of the data












AG Energiebilanzen
Der durchschnittliche CO2-Ausstoß pro Kopf in Deutschland beträgt rund 11,7 Tonnen jährlich.
CO2 Rechner










Wie warm wird die Zukunft?

2005 - 2095



























































































At the end of 2012 the world wide installed
electric
power plant capacity reached more than 5300 GW
.

Kraftwerkskapazität in Deutschland, brutto: 170 GW.

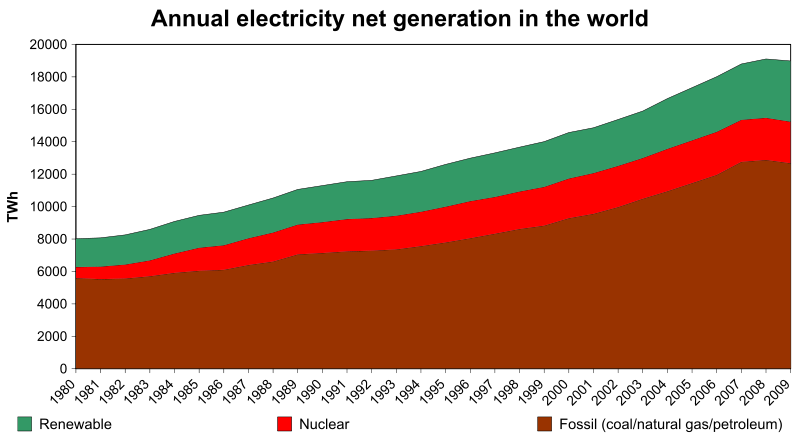

World energy consumption








Daten/ Statistiken/ Infografiken













Dan Miller uses ink to demonstrate how CO2 can have a big impact on warming the earth.








Die Bedeutung des Waldes




Heutzutage speichern unsere Wälder ca. 90 Prozent des Kohlenstoffs der Atmosphäre.
Das heißt, wenn die Wälder verschwinden würden, würden wir doppelt so viel Kohlenstoff in der Atmosphäre haben.







The cubic mile of oil.

The world uses about 30 billion barrels of oil per year.
That is 1.2 trillion gallons, which works out to just about 1 cubic mile of oil.


And another way of illustrating the same concept:










Der Elektrizitätsverbrauch in den USA betrug in 2006: 4.052,24 TWh = 4.052.240 GWh = 4.052.240.000 MWh.
Für die Produktion dieser Menge werden ca. 462.584 MW an Krafwerksleistung benötigt.

Die Kosten für 1 MW Windenergie betragen ca. $1,5 Mio.
Der US Militärhaushalt in 2010 beträgt  $635 Mrd.

=> Für diese Summe könnte die USA 423.333 MW an Windkraftwerken aufstellen. Fast die gesamte benötigte Kraftwerksleistung für die US Energieproduktion - für nur ein Jahr.






Meersespiegelanstieg

Nach jüngsten Schätzungen soll der Meeresspiegel in den kommenden 100 Jahren um rund einen Meter steigen - im Durchschnitt.

Im Moment steigt im Norden der Nettoeintrag an Schmelzwasser um 237 Kubikkilometern pro Jahr.

(Dies enstpricht einem Würfel mit einer Kantenlänge von 6,2 km.)












30.05.11, veraltet
Treibhausgas-Ausstoß steigt schneller als je zuvor
-
Die Begrenzung der Erwärmung auf zwei Grad nur noch "eine nette Utopie".
- Der globale CO2-Ausstoß stieg in 2010 um 1,6 Gigatonnen.
- Insgesamt betrug die CO2-Emission in 2010 weltweit 30,6 Gigatonnen.
- Anstieg um knapp fünf Prozent gegenüber dem bisherigen Rekordjahr 2008.
- Ein ähnlicher Anstieg in 2011 würde es praktisch unmöglich machen, den Klimawandel auf einem beherrschbaren Maß zu halten.
- IEA-Chefökonom Fatih Birol: "Ich bin äußerst besorgt. Das sind die schlimmsten Nachrichten zum Thema Klima."
- IPCC prognostiziert eine 50-prozentige Chance, dass die globale Durchschnittstemperatur bis zum Jahr 2100 um mehr als
  vier Grad
steige.
- Nicholas Stern: "Das Ergebnis wäre verheerend."
